My build (very slowly progressing)
-
@kirk about the jig, yeah I modified the FreeCAD version. It's probably prone to tipping. I'll see that once I get the pumps and hobo modify it and then modify my model and share it.
-
@sepi Great job, your assembly is really looking quite good. Can't wait to see how it will perform.
-
@czahl said in My build (very slowly progressing):
@sepi Your PP parts are looking good. Which filament did you used?
https://www.3djake.com/fiberlogy/r-pp-anthracite?sai=12757
It's pretty soft but that might just be PP. I never used PP before. I just selected the cheapest one on 3dJake. -
@kirk about the jig, yeah I modified the FreeCAD version. It's probably prone to tipping. I'll see that once I get the pumps and hobo modify it and then modify my model and share it.
-
I've done it with just one flow frame: That seemed to be good. The problem with your proposal is that (at least that's what I think it is) the photo paper is permeable to air. I might put a piece of tubing on the second flow frame to test the seal on the whole cell. Then again, the only real test is to use some liquid. For that I need to wait for those pumps to arrive, which should be this or next week.
-
@sepi Nicely done! Also don't forget to wrap your screws in packing tape before you assemble the device for testing, otherwise the screws will short the cell.
@danielfp248 I actually used Kapton Tape but should probably use PP-tape instead.
-
I've done it with just one flow frame: That seemed to be good. The problem with your proposal is that (at least that's what I think it is) the photo paper is permeable to air. I might put a piece of tubing on the second flow frame to test the seal on the whole cell. Then again, the only real test is to use some liquid. For that I need to wait for those pumps to arrive, which should be this or next week.
@sepi said in My build (very slowly progressing):
I've done it with just one flow frame: That seemed to be good.
This sounds great. I also want to do the same then to eliminate as much of uncertainties as possible from the very beginning. It is always frustrating to identify such bugs after assembling everything together. For sure, the final test is the one with the liquids. Looking forward for your first tests with the pumps installed.
-
I've done it with just one flow frame: That seemed to be good. The problem with your proposal is that (at least that's what I think it is) the photo paper is permeable to air. I might put a piece of tubing on the second flow frame to test the seal on the whole cell. Then again, the only real test is to use some liquid. For that I need to wait for those pumps to arrive, which should be this or next week.
@sepi If you have an assembled cell with everything except the pumps you can use a syringe to manually pump some liquid through and see if you have any obvious leaks. This is how I normally test cells before I put activate material inside them or cycle water through them using pumps.
-
@sepi If you have an assembled cell with everything except the pumps you can use a syringe to manually pump some liquid through and see if you have any obvious leaks. This is how I normally test cells before I put activate material inside them or cycle water through them using pumps.
@danielfp248 Good trick, now I only need a syringe.
-

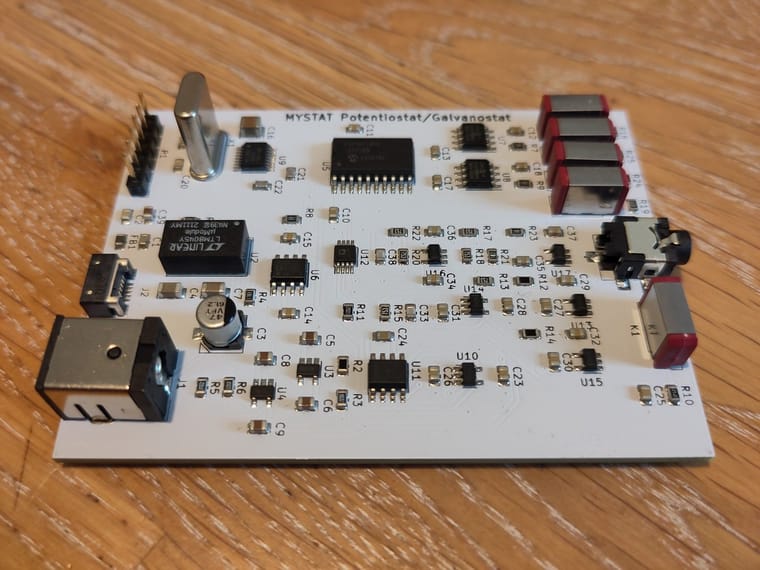

My Mystat finally arrived, yay! No I need to figure out how to flash that pic (hopefully no programmer neede) and get rid of the remaining 5 PCBs.
@sepi You do need a programmer to flash that. We use a PcKit3 programmer.
-
@danielfp248 noooooooooooo. I'll add: replacing it with an esp32, to the list of projects I will never do.
